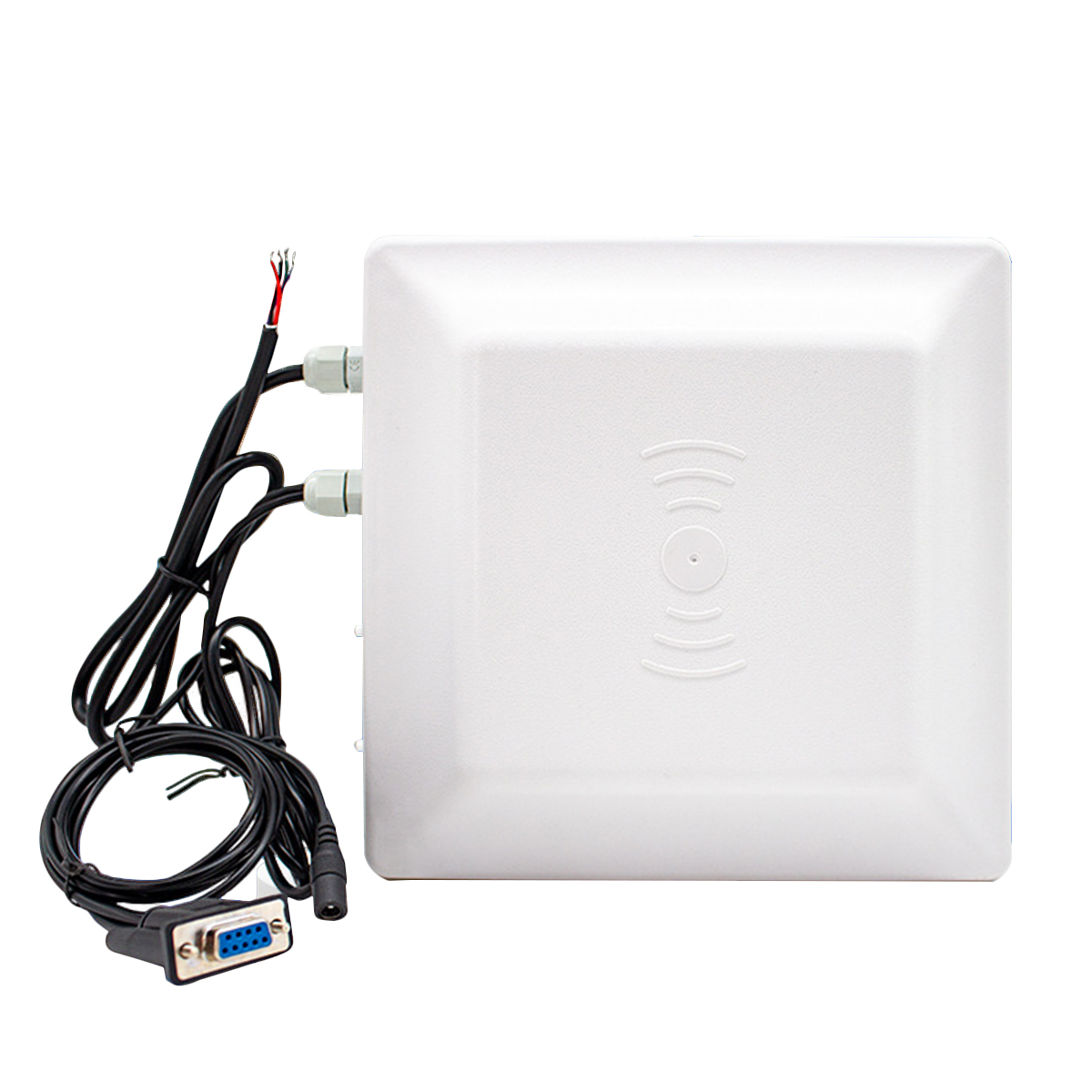

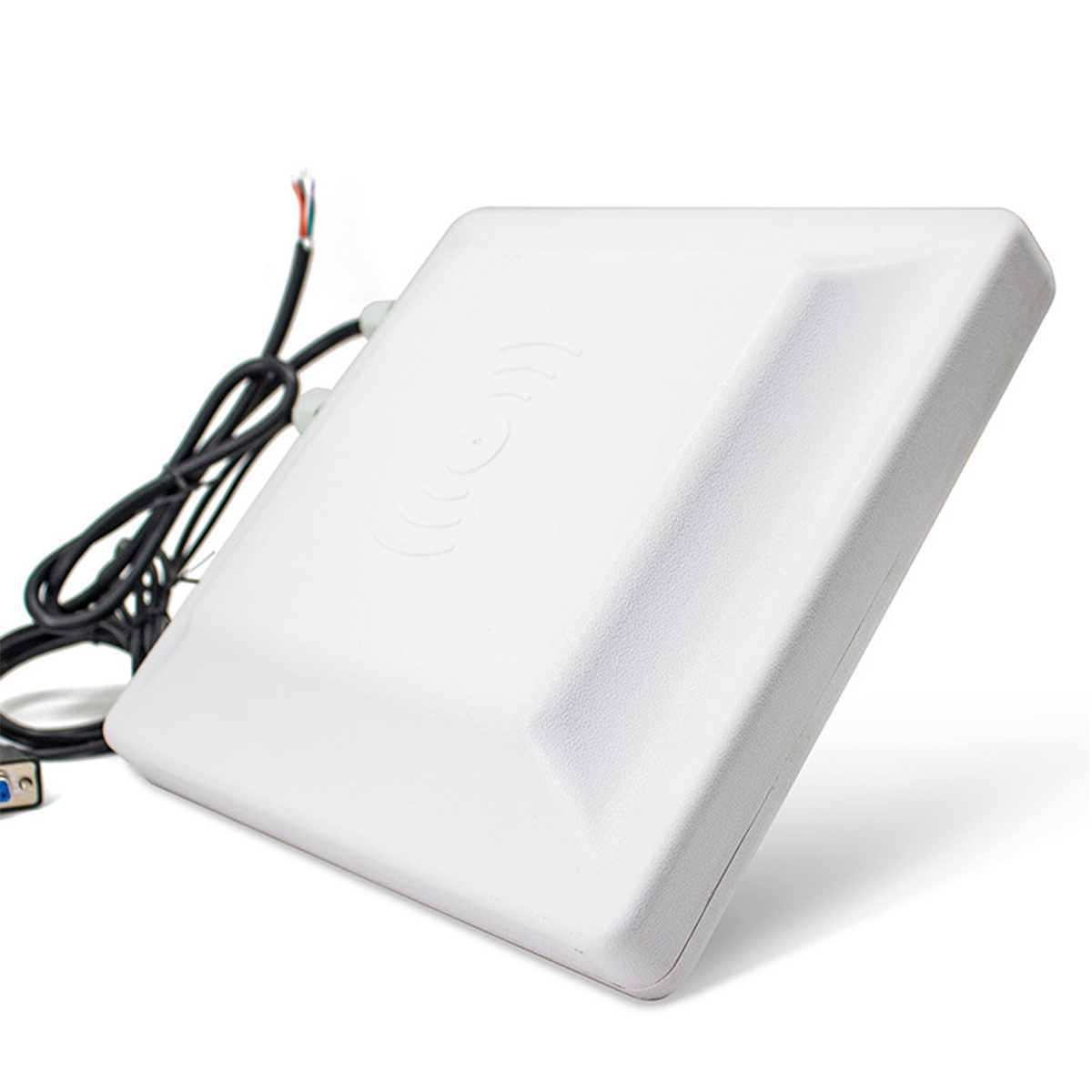

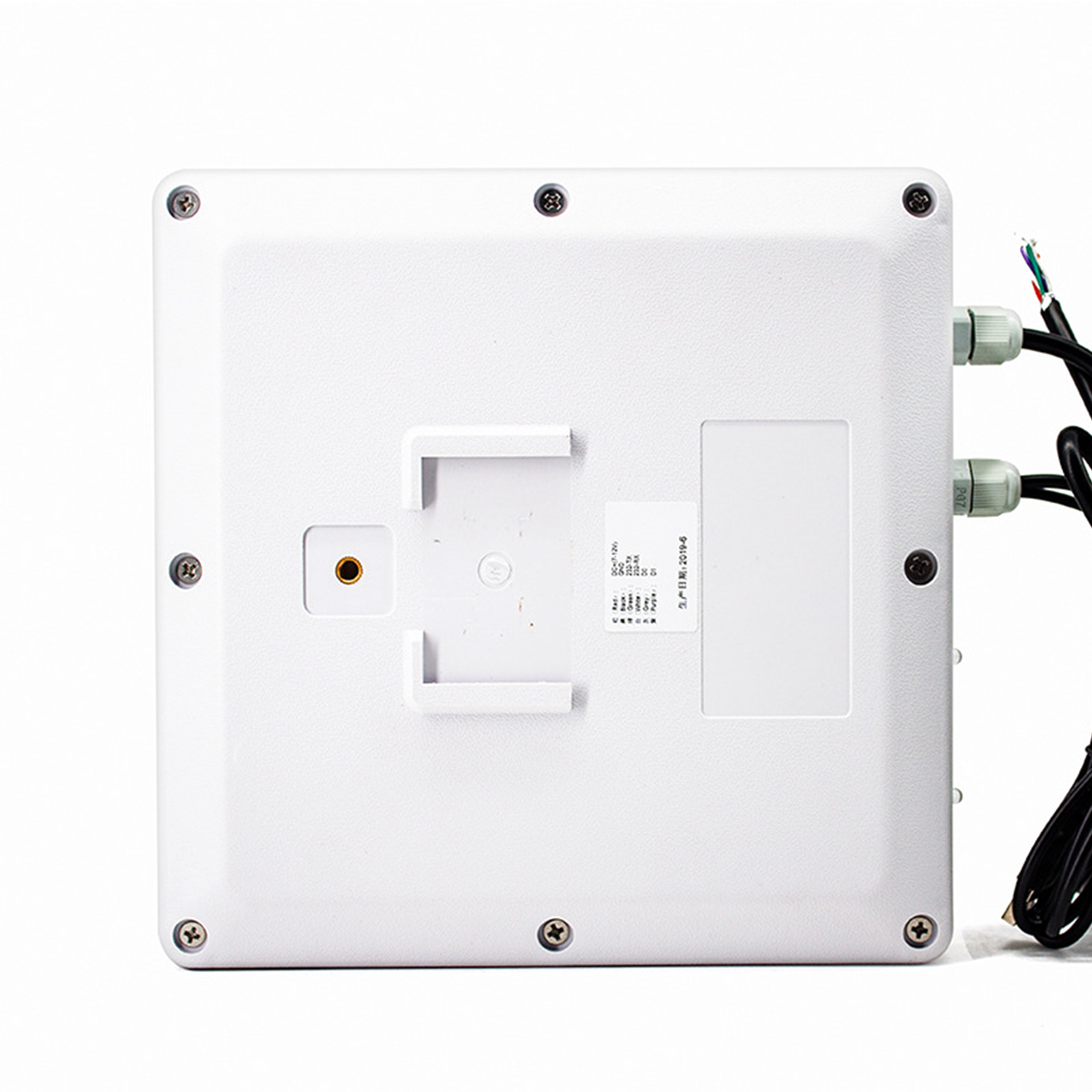

UHF parking reader is a high-performance UHF RFID integrated reader. It is designed with low power dissipation and high integrated RFID chip solution, which has features of long reading distance, high identification speed, multiple interfaces, and easy installation. It can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system, etc.
| CPU & Memory | ARM9, 400MHz；Flash 128MB; DRAM 32 MB |
|---|---|
| Size & N.W. | 290mm(L)×290mm(W)×55mm(H), 1.6Kgs |
| Reading Distance | 0~ ≥15m(According to Tag & Environment, max 40m) |
Bullet Points:
★ Long-range recognition
★ Fast reading rate
★ Solid material waterproof design
★ Variety communication interface
★ Built-in circular polarization antenna, increase signal
★ Super stable circuit board
★ Small power consumption
★ wide application
Features:
| Size & N.W. | 290mm(L)×290mm(W)×55mm(H), 1.6Kgs |
| CPU & Memory | ARM9, 400MHz；Flash 128MB; DRAM 32 MB |
| Operating System | Linux 2.6 OS built-in |
| Network Characteristics | TCP/IP (RJ45), RS-232, RS-485, Wiegand |
| GPIO | 1 optcoupler input, 1 pair 5V output or Wiegand output |
| Reading Distance | 0~ ≥15m(According to Tag & Environment, max 40m) |
| RFID | Protocol: ISO/IEC 18000-6B, ISO/IEC18000-6C / EPC C1G2, GEN2V2
Impinj R2000 chip, new E710 update optional Frequency: FCC / CE(ETSI) / CN(CMII) in standard Russia, Japan, Brazil, Australia, etc, special frequency band optional RF output: 0-30dBm adjustable |
| Antenna | Circular 9dBi, VSWR ≤ 1.2:1 |
| Programing Functions | Automatic reading/ White list Breakpoint Resume / Match reading / Data filter Data format customizable (PLC / Modbus compatible) RF Micron / EM Temperature sensor custom Services |
