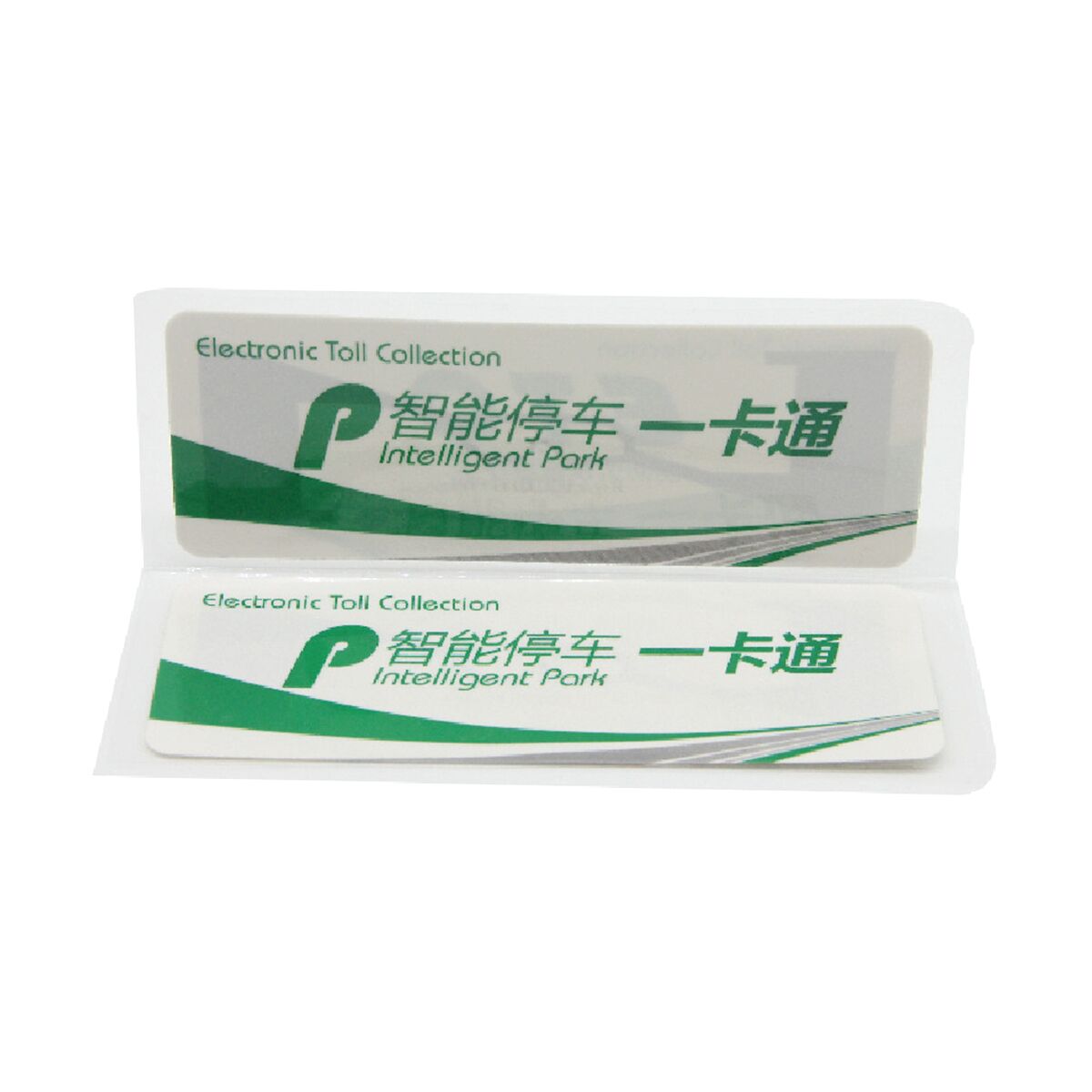

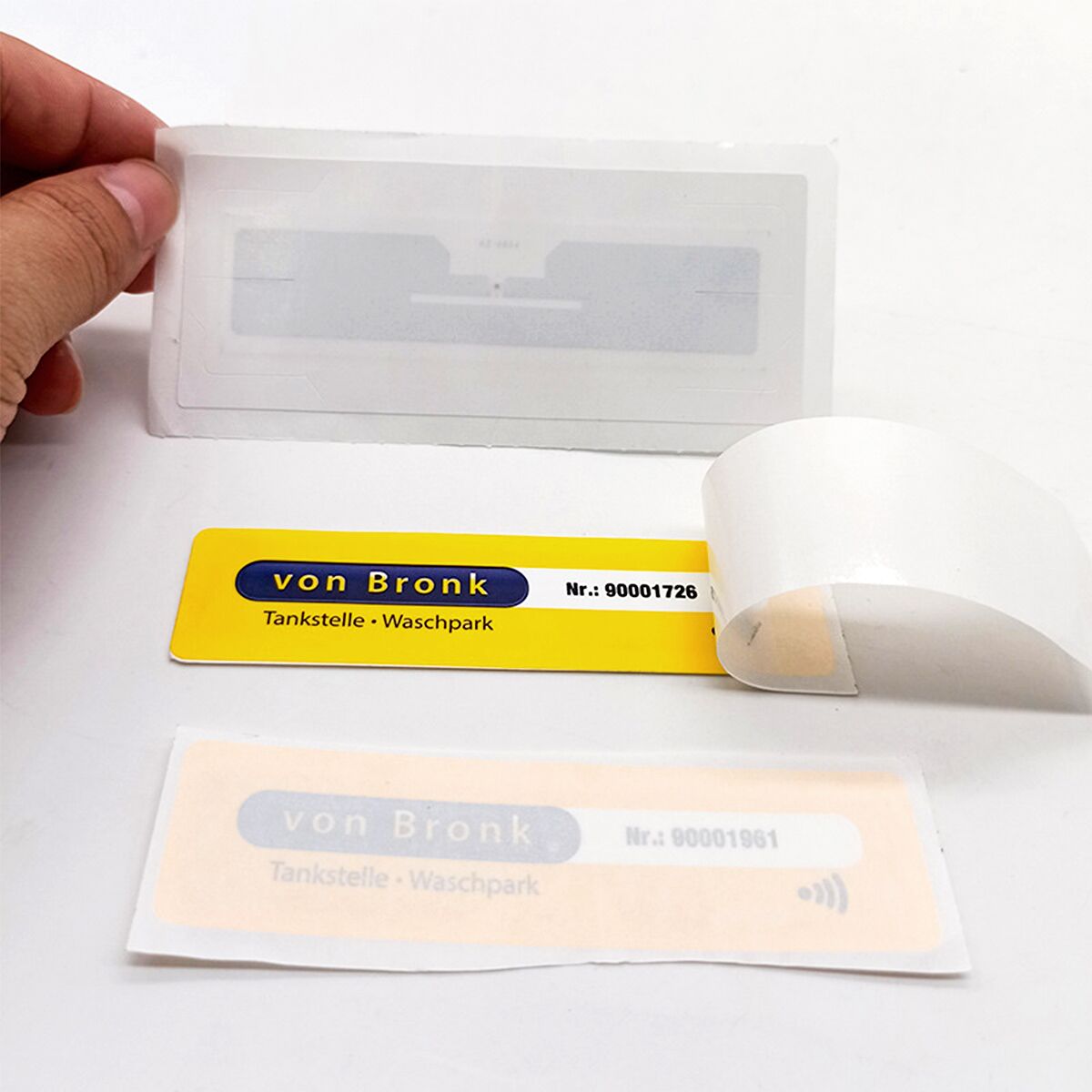

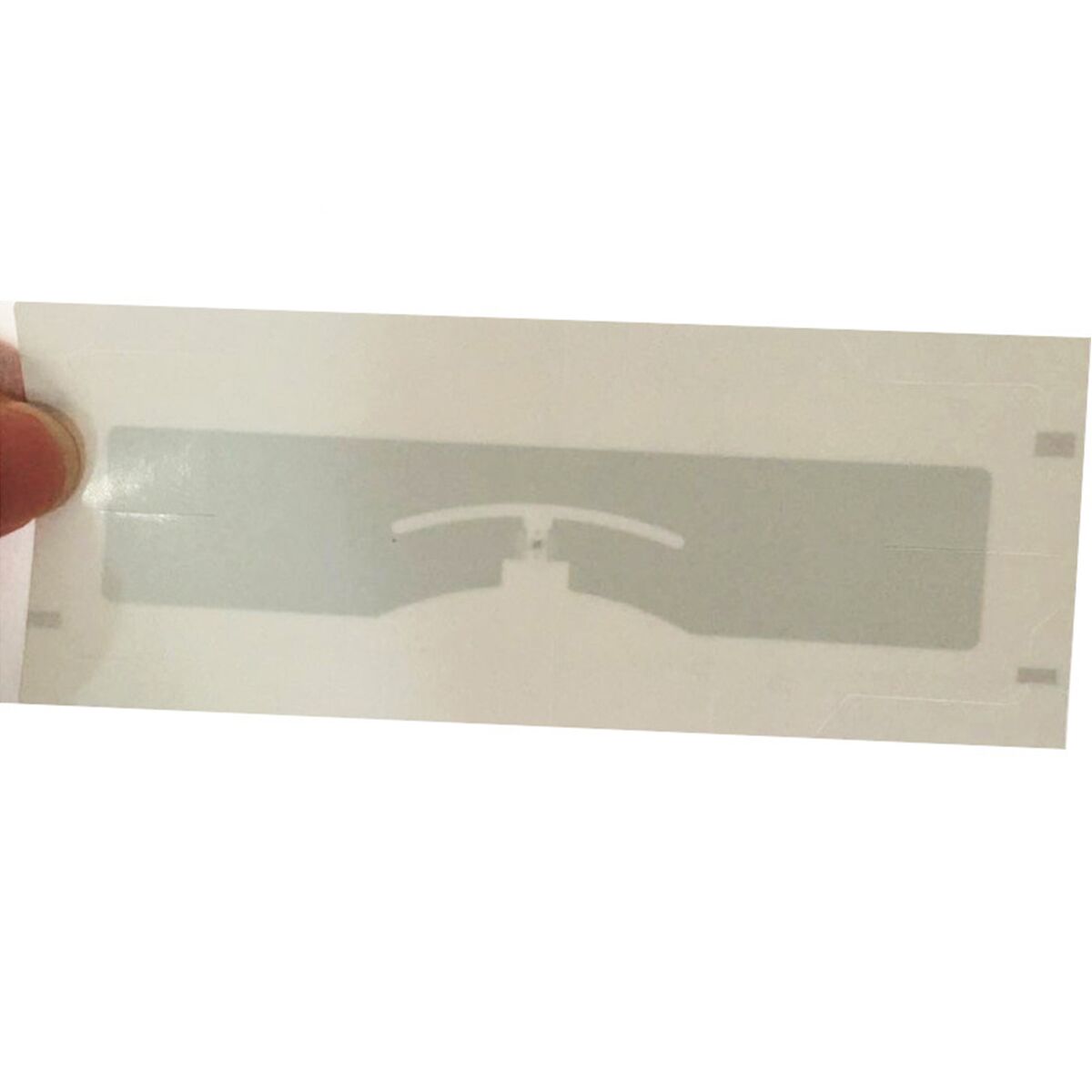

RFID custom windshield tags offer a more accurate and secure way to allow access into various locations like a gated community, the company secured parking or even a car wash. The inlay utilizes passive technology and is encapsulated between thin layers of polypropylene adding human readable printing to one side and a windshield-compatible adhesive to the other.
| Material | Paper, PVC, PET, PP |
|---|---|
| Size | 30*15, 35*35, 37*19mm, 38*25, 40*25, 50*50, 56*18, 73*23, 80*50, 86*54, 100*15 or customize |
| Read Distance | 1m- 10m(subject to reader performance and working environment) |
Features:
1. Specialized inlays read well through windshield glass.
2. Long-range reading
3. Customize printing
4. Destructible option prevents unauthorized vehicles from using tags transferred from authorized vehicles.
Specification:
| Material | Paper, PVC, PET, PP |
| Dimension | 101*38mm, 105*42mm, 100*50mm, 96.5*23.2mm, 72*25 mm, 86*54mm |
| Size | 30*15, 35*35, 37*19mm, 38*25, 40*25, 50*50, 56*18, 73*23, 80*50, 86*54, 100*15 or customize |
| Optional craft | One side or two sides customized printing |
| Feature | Waterproof, printable, long range up to 10m |
| Application | Widely used for vehicle, car access management in the parking lot, electronic toll collection in a high way, etc， installed inside car windshield |
| Frequency | 860-960mhz |
| Protocol | ISO18000-6c, EPC GEN2 CLASS 1 |
| Chip | Alien H3/H4, Impinj M4/M5/M6 |
| Read Distance | 1m- 10m(subject to reader performance and working environment) |
| Read/Write Cycle | 100000 times |
| User memory | 512 bits |
| Reading Speed | < 0.05 seconds Valid Using lifetime > 10 years Valid Using times >10,000 times |
| Temperature | -30 ~ 75 degrees |
