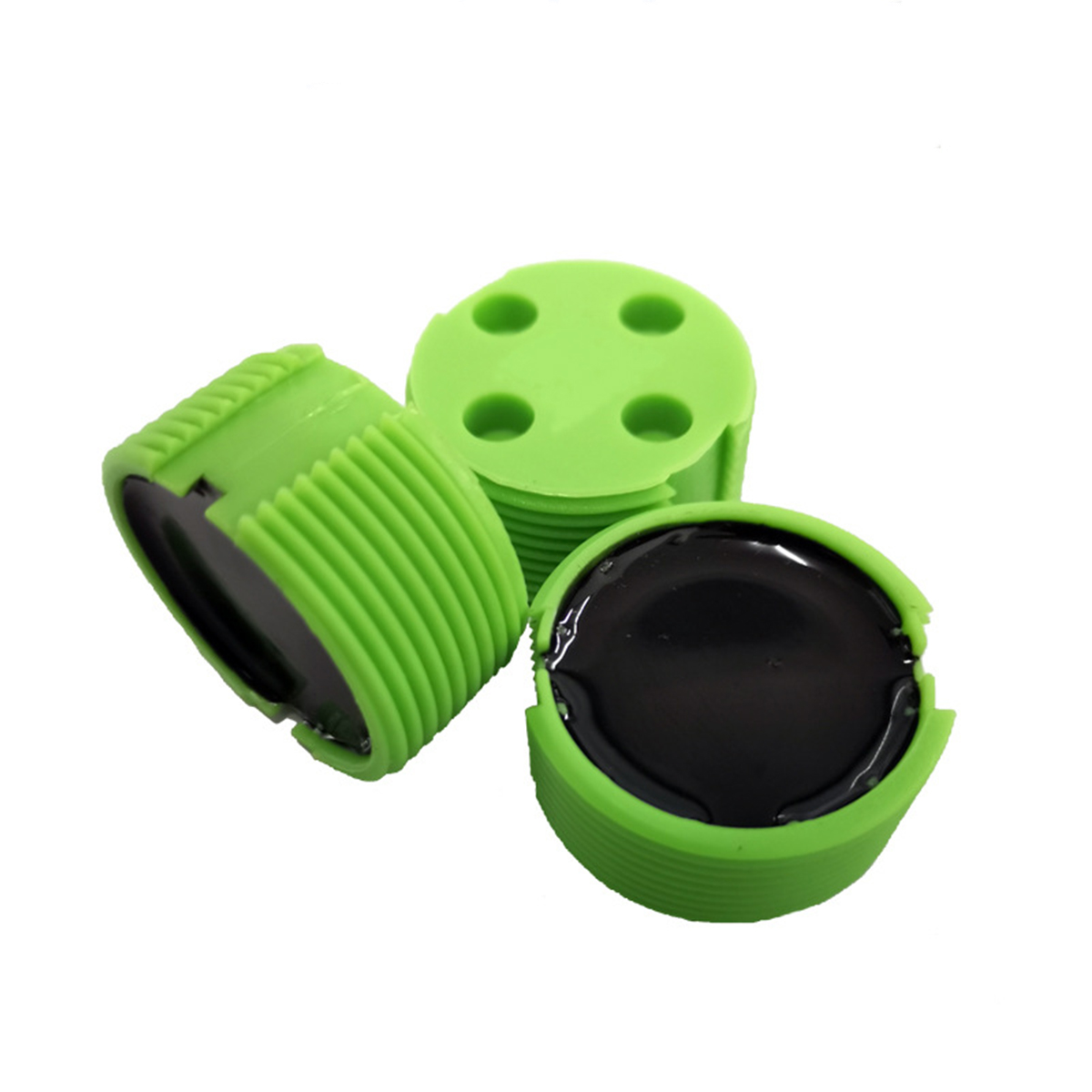

RFID bin tags are designed to be installed within existing chip nesting in most residential types of bins and can also be on public outdoor bins. Tags are designed to be read in multiple pickup directions and are suitable for side or rear lift applications in harsh environments to facilitate garbage sorting and efficient management.
| Material | ABS+Epoxy filling |
|---|---|
| Waterproof | Yes |
| Color | Black, Orange or Costomized |
Bullet Points:
● Easy to screw into a specific area of the bin. With its rugged housing, it can withstand the harsh environment of everyday operations.
● Trash bin labels are specifically designed for use with boxes. Because of their rugged appearance, labels are very effective in harsh outdoor environments. Four mounting holes make it easy to attach labels to items.
● RFID bin tags are designed for the harsh high impact and chemical environments that occur in waste management.
Specification:
| Product Name | RFID Waste Bin Tag |
| Material | ABS+Epoxy filling |
| Diameter | 30mm |
| Thickness | 15mm |
| Holes diameter | 5.5mm |
| Axial/Radial Force | 1000 N, 10 sec |
| Color | Black, Orange, or Customized |
| Shock | IEC 68.2.29(40G, 18ms, 6 axes, 2000 times) |
| Working Frequency | 134.2KHz/ 125KHz/ 13.56MHz/ UHF |
| Read Distance | – 5~10cm
– 5cm – 2m ~ 3m Dependent upon reader, environment and application |
| Standards | Unique: DIN 30745; FDX-b BDE: EN14803, DIN130745; HDX: EN14803, DIN30745; HF: ISO15693, ISO18000-3, DIN30745; UHF: UHF EPC CIG2, ISO18000-6C, DIN30745. |
| Operating Temperature | -25 to +120°C |
| Storage Temperature | -40 to +200°C |
| Weight | 10g |
| Resistance | Harsh environment |
| Crafts | * Ink-jet printing Logos & Number * Laser Serial Number, UID number * Chip encoding * Anti-metal layer * Epoxy filling |
| Water IP67 | IP67, 20°C, 1mx 1h |
