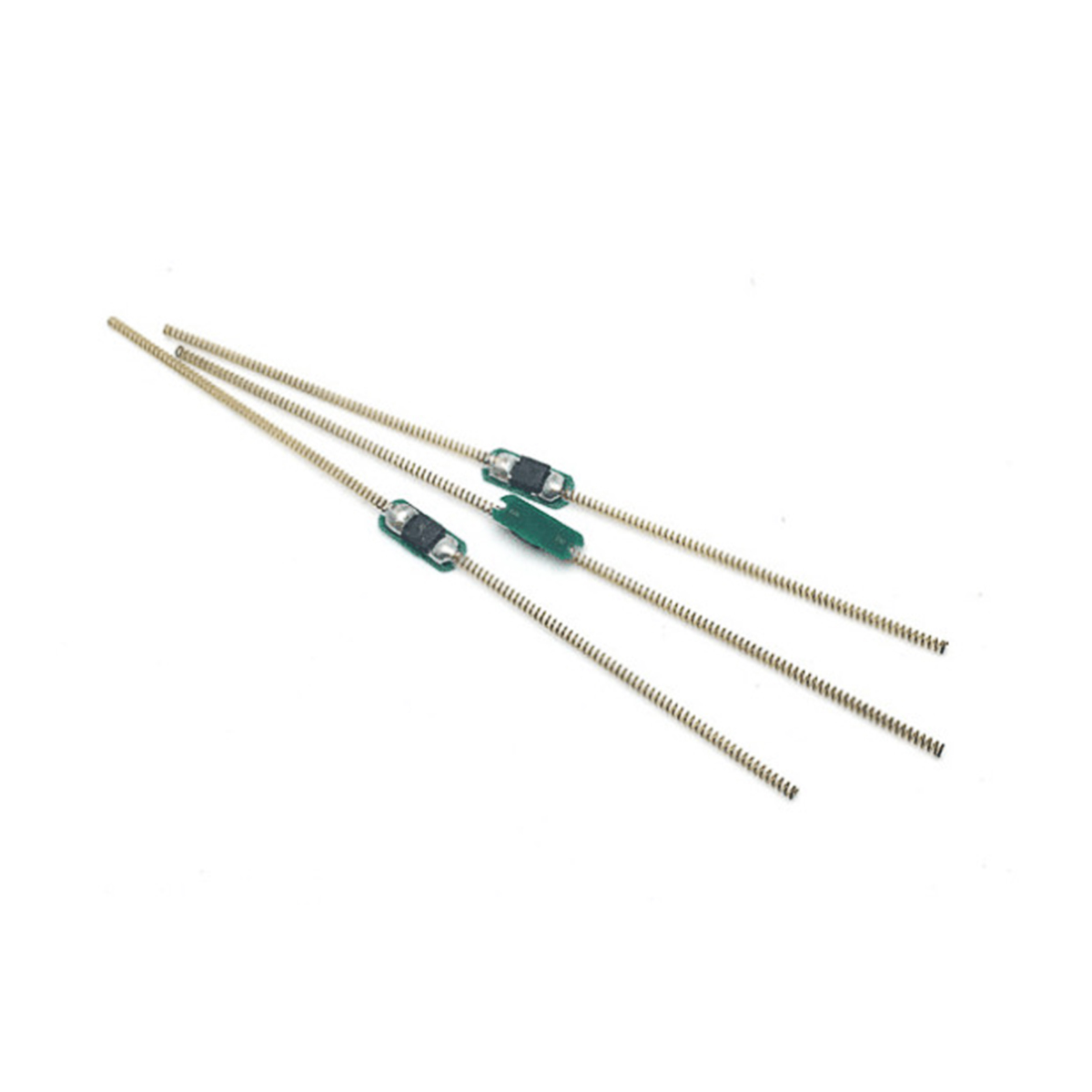

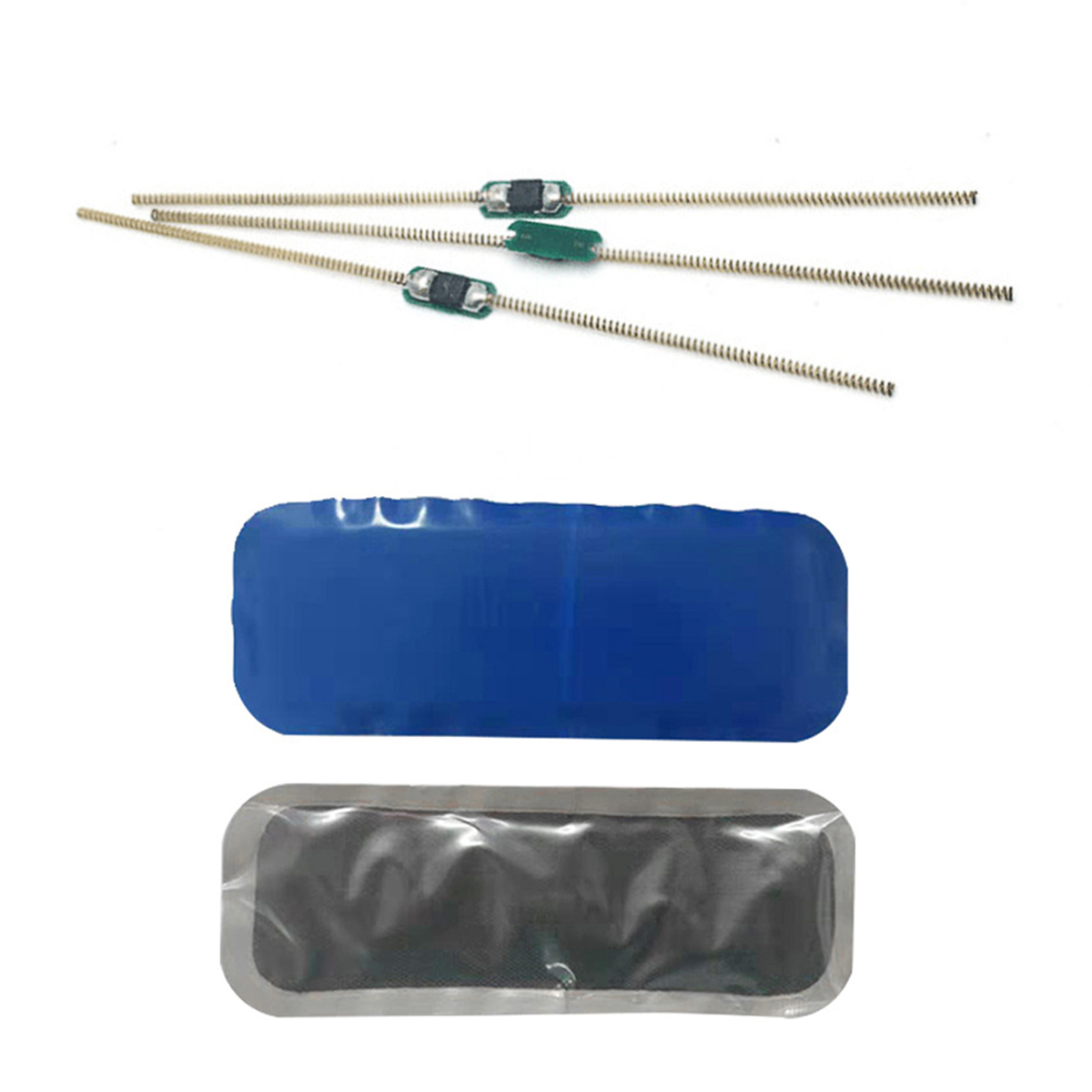

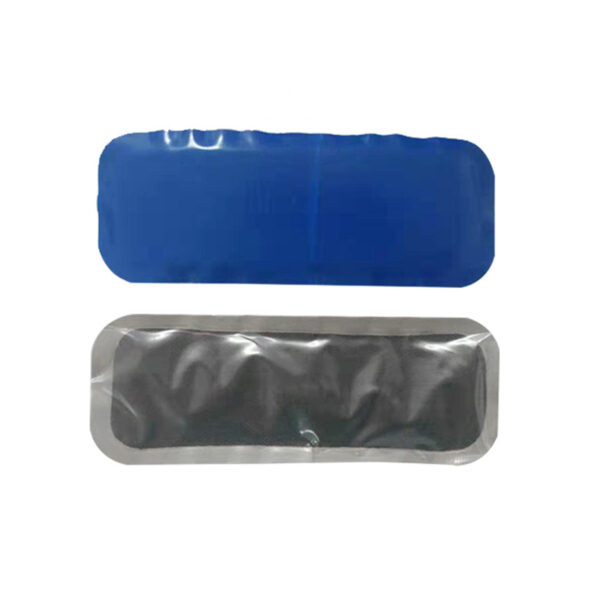

There are 2 different tire tags for vehicles, one is implanted into the tire(also called spring tire label), another is stuck on the tire surface(rubber material).
| Material | Rubber, spring |
|---|---|
| Memory capacity | 96bit |
| Frequency | 860—960MHZ |
RFID Tire Tag has high temperatures feature when encountered in the tire retreading process and is sturdy enough to remain operational throughout the operating life of the tire. it has finished thousands of kilometers of actual road tests, which did not lead to potential tire defects.
RFID tags can write tire production, sales, use, refurbishment data, etc., can be collected and read the corresponding data through the terminal at any time, the owner can obtain information whenever, it’s convenient and effective for vehicles management.
Specification:
| Protocol | EPC CLASS1 Gen 2/ISO 18000-6C |
| Chip | ALIEN AlienH3,Monza4QT |
| Frequency | 860—960MHZ |
| Memory capacity | 96bit |
| Dimension | Rubber: 110*55*3mm
Spring: 85*38*2.5mm ,90*4*1mm, etc. |
| Working mode | Read and Write |
| Storage time | >10years |
| Erasable times | >100,000time |
| Working temperature | -30℃ ~85℃ |
| Storage temperature | -40℃~+85℃ |
| Withstand the pressure | 1000KPa |
| Material | Rubber, spring |
| Installation method | Vulcanization glue |
