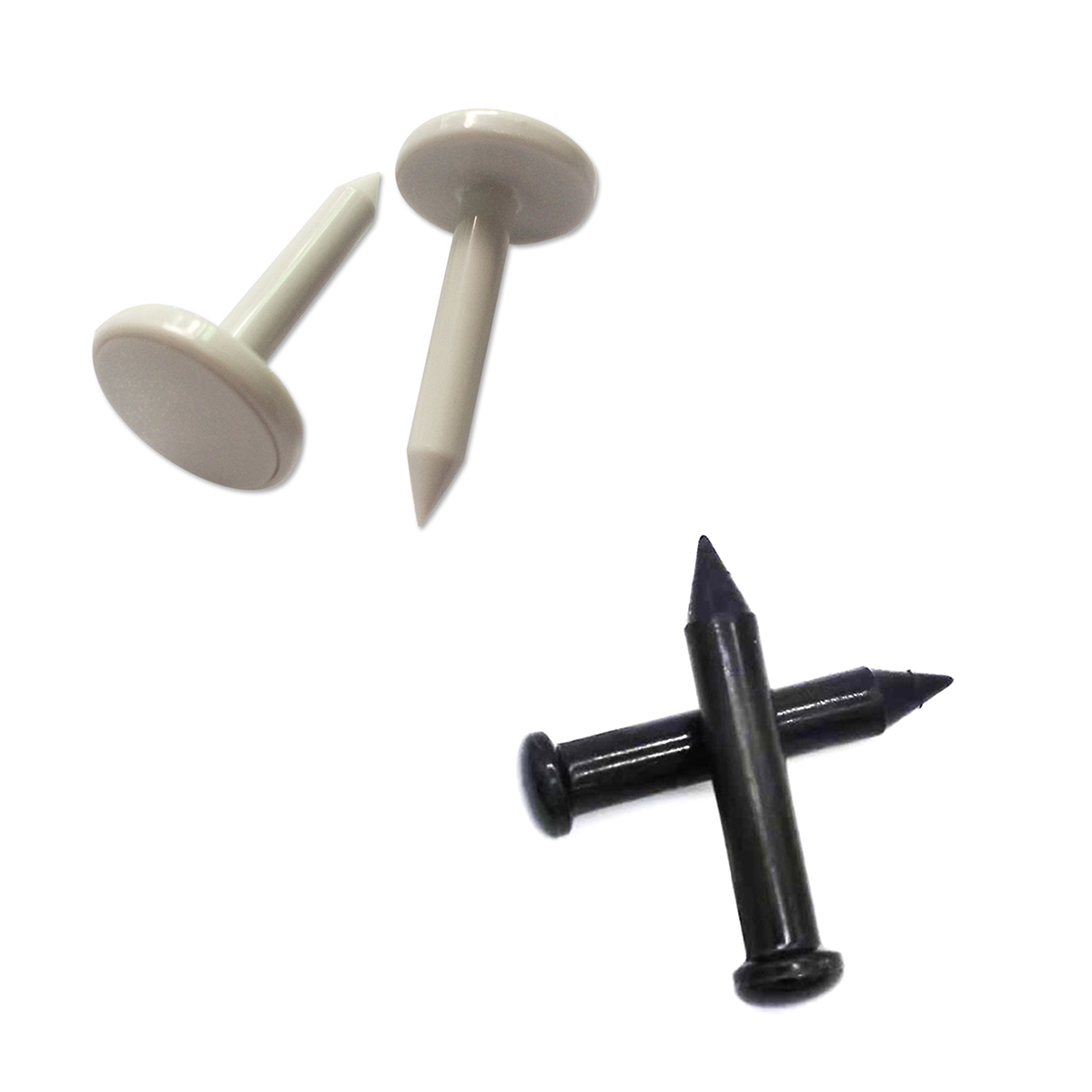

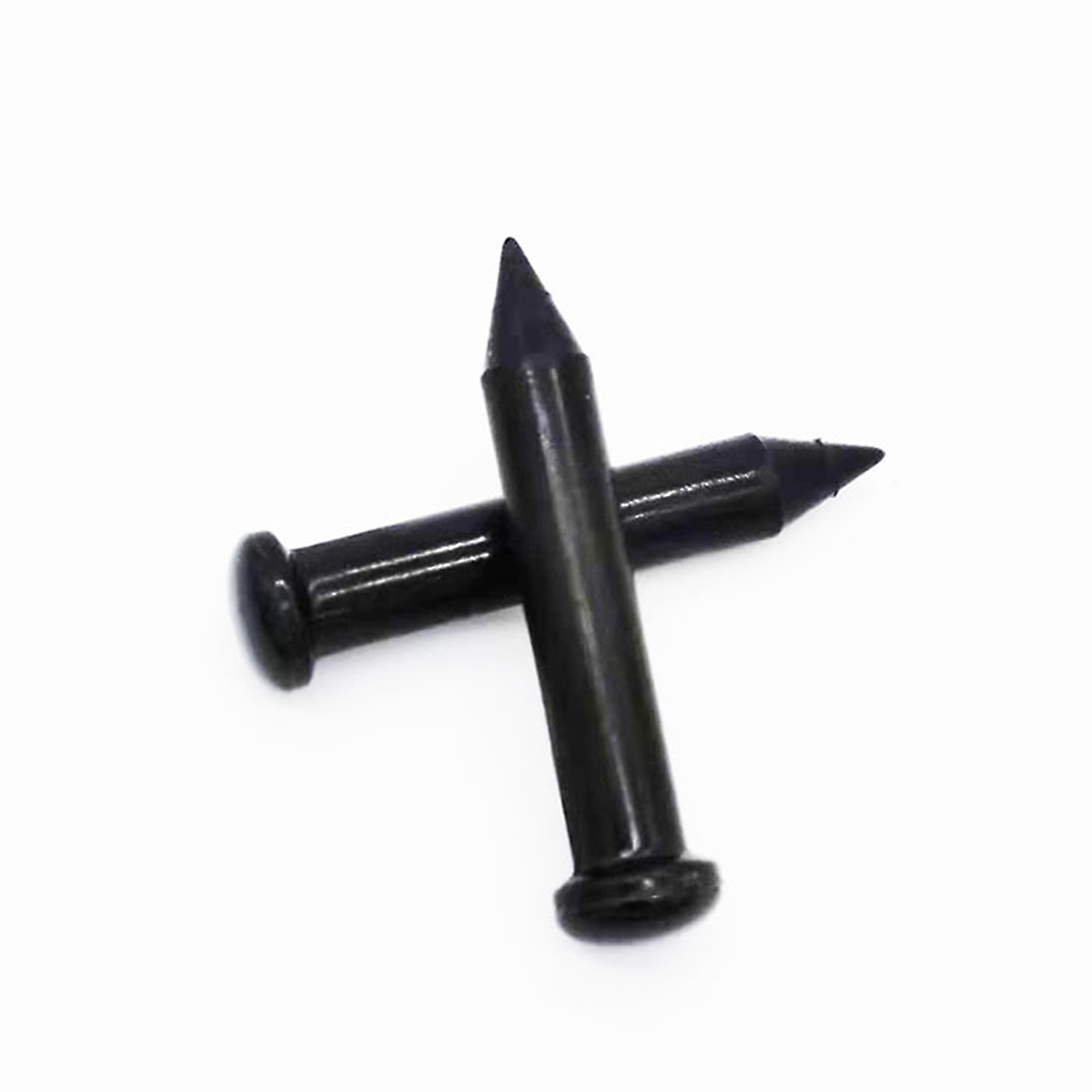

RFID nail tag as a new application shape RFID tag and also called RFID tree tags, encapsulated by special plastic materials and chip coils that can be nailed into various wooden. With waterproof and anti-chemical corrosion effect. RFID nail tags are well applied to forestry (tree) management, trash management, furniture, wood identification, etc.
| Material | ABS Plastic |
|---|---|
| Color | Blue,red ,black, white,yellow,gray, customised |
| Size | 36*6mm or customize |
Bullet points:
1. ABS material
Made of ABS material by ultrasonic packaging, waterproof, high-temperature resistance, acid, and alkali corrosion resistance, impact resistance, and other characteristics.
2. Waterproof and wear-resistant, not easy to fade
Laser, custom design, waterproof and wear-resistant, not easy to fade.
Specification:
| Material | ABS Plastic | |
| Color type | Blue,red ,black, white,yellow,gray, customised | |
| Chip Available | LF chip | TK4100,EM4102,EM4200,T5577,etc |
| HF chip | F08,classic S50,classic S70, nfc 213 215 216, etc | |
| UHF chip | GEN2 ALIEN H3 IMPINJ M4, etc | |
| Frequency | 125KHz(LH),13.56MHz(HF),860-960MHz(UHF) | |
| Protocol | ISO 14443A, ISO15693, ISO 18000-6C, | |
| Dimensions(DxL) | 36*6mm or customize | |
| Reading Distance | 1-10cm(depend on reader) | |
| Packing | 100pcs/OPP bag, 20opp bag/ carton | |
| Working temperature | -40℃ to +85℃ | |
| Application range | Nail into all kinds of wooden objects, waterproof and anti-chemical etching – Item identification(Tree,garbage can,furniture wood,etc) -People can use it to manage non-metal articles packages, parks, forests, wooden furniture, etc. | |
| Installation | 1. Make a hole in the wood or tree(diameter 36*6mm) 2. Insert Nex-211 nail tag with a rubber plastic hammer 3. Avoid drilling nail tags in the wood or tree directly, which will damage the nail tag | |
