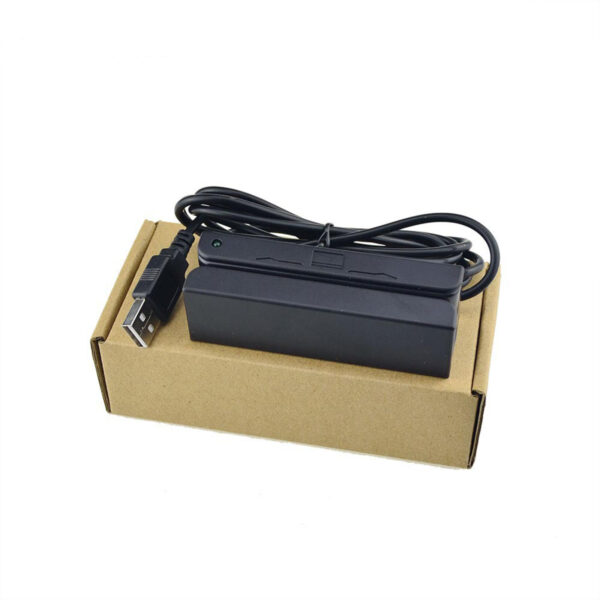

Magnetic Stripe Card Reader MSR100 with USB interface can read Track 1, 2, and 3 HI/LO-CO magnetic cards in Bi-direction and is designed to offer a card reading solution for ISO 7811/12 formats.
| Power | +5V DC ±5% |
|---|---|
| Recording Capacity: | 79 Characters, 40 Characters or 107 Characters |
Main Functions:
◆ With indication light
◆ Low power consumption, good compatibility
◆ ISO 7811/12/13/14
◆ Easy Programmable
◆ RS232/PS2/USB
◆ Cards can be swiped and read in both directions
◆ Readers can be affixed to most computer keyboards or to any flat surface
◆ Can be connected to any PC or Mac via keyboard wedge or USB interface.
Specification:
| Name | USB Magnetic Card Reader |
| Technic Details: | Recording Density: 201 BPI, 75 BPI, or 210 BPI |
| Recording Capacity: | 79 Characters, 40 Characters or 107 Characters |
| Power Supply: | +5V DC ±5% |
| Power Consumption: | 65mA(max.) |
| Head Function: | Read-only 1.5mm |
| Card Thickness: | Plastic 0.76 ± 0.08mm |
| Operation Speed: | 10- 150cm/sec |
| Error Rate: | Less than 0.5% |
| Interface: | RS232, PS2, USB, or TTL is available |
| Dimension: | 90 x 26 x 28mm |
| Operation Locus: | Indoors only |
| Cable Length: | 150cm |
| The lifetime of Header: | 800,000 card passes (1 pass: one swipe) |
| Weight: | Appro. 100g |
